"Just the facts please ma'am!" Here's where you can get answers to frequently asked questions, some of which are taken from our discussion boards, Internet search phrases, and telephone inquiries from across North America. We're striving to ensure that this page will continue to represent one of the Internet's best and most responsive resources for answers relating to fire protection, fire equipment technology, emergency systems, and building life safety issues. We've categorized the questions in order to make searching for your answer easier. We welcome your suggestions, critques and comments. We hope that some of the issues raised here will help spark further discussion. Please feel free to email us at the link below, telephone us, or share your thoughts in our general forum. Who's behind the Fire Technicians Network? Can you use the forms provided here in other Canadian Provinces? Does the Fire Protection Technicians Network offer any technical training? Can you use a cable jack for Shaw Digital Phone?
How do you tie in (interconnect) door holders on a fire alarm system? How many sprinkler tampers can you legally hook up to a single fire alarm supervisory zone? Can you review the relevant codes regarding the installation of insuite signalling appliances? Can security wires be run with fire alarm wires in Canada? Does the fire alarm circuit disconnecting means have to be painted "red" and locked "on"? How many initiating devices can you have on a fire alarm system? Are there any fire alarm relays listed for tripping from a notification circuit? What's the Code say about monitoring sprinkler valves? Where should a fire alarm control panel be installed? How do you add an isolator module to an existing fire alarm panel? Is it permissible to have different audible signal devices in the same building? What is the maximum mounting height for a fire alarm pull station in Vancouver? Can fire alarm wiring be painted? Do you require a class "A" circuit for a fire alarm emergency communications riser? What standard do I use in verifying a fire alarm system that was installed thirty years ago? How can a local authority properly vet (authenticate) a fire alarm system verification report? Who has final authority to accept a fire alarm system installation? Who can verify a fire alarm system (in Canada)? What qualifications should they have? How many times is a fire alarm system verified? What is a Fire Alarm Verification Certificate? What should a Fire Alarm Verification Test Report include? If I change out a fire alarm device, do I need a verification?
What procedure should I follow if the FAS I’m testing doesn’t comply with the installation standard? What is the correct use of a RED TAG? What's the difference between a supervisory alarm and a trouble signal?
What kind of signals should a fire pump provide to a building fire alarm system? Can you explain how a fire pump controller should be connected to a fire alarm system? Can any fire alarm technician test a fire pump? What are the rules for monitoring sprinkler heat tracing on a fire alarm system?
What's the maximum mounting height for a fire extinguisher? Who can perform a hydro-static test on a fire extinguisher? Would you recommend one of those "mini" fire extinguishers for a home? How do you tell when a fire extinguisher is bad?
What is the correct procedure to use when testing a 347 volt battery pack (emergency light unit)?
1. When connecting the heater of an outdoor fire alarm annunciator, is it acceptable to tie into the fire alarm system’s power supply (circuit disconnecting means)? Most definitely NOT! CAN/ULC-S524 stipulates that the fire alarm system must be serviced by a dedicated circuit. Many technicians (including those that are factory trained on the subject equipment) feel that a tie-in to the fire alarm AC circuit is an acceptable means of ensuring the power to the annunciator heater is not inadvertently compromised. This is not the case! I have seen a number of transformer failures where the secondary windings have “opened” without affecting the primary side and thereby tripping the breaker (some transformers may even employ a fused secondary). The proper way to monitor power to the annunciator heater is through an appropriately rated low voltage relay connected to the secondary output. The fire alarm system can supervise a normally closed contact on the relay (which would trigger “open” – or show as “normal” when energised) through a latching supervisory input on the common control. You could parallel this connection to the same circuit monitoring the building’s “heat trace” if you’ve run out of available zones (just make sure you make the appropriate change to the zone descriptor). Special NOTE: If you come across a fire alarm control that has a transformer (other than the systems primary power supply transformer) installed and which would invariably be paralelled to the system's main AC bus, you must RED TAG the panel. An "after market" installation of this type violates the ULC listing on the panel. Inspector's Tip: If the power to the annunciator heater goes down when you trip the breaker for the fire alarm system, the installation is in violation of ULC/CAN-S524. 2. What procedure should I follow if the FAS I’m testing doesn’t comply with the installation standard? That depends on what standard you’re testing to. If it’s CAN/ULC-S536 (Annual Test) you should make note of any deficient items (as you would normally). Remember, you are testing the devices that are connected to the system, and you are doing so to a different standard from that of the technician that performed the Verification Inspection. Should you “tag off” on the system? By all means do so, but make sure you check (or punch) the part of the tag that states “see log and report”. If you feel the deficiency is substantial enough (the batteries are incorrectly sized for instance), then you should also ensure you check (or punch) the column that states “additional work required”. The example given of the incorrectly sized batteries definitely warrants a RED TAG. You should also provide a copy of your report to the local electrical inspeciton authority or the Fire Department's Fire Prevention Office. 3. What procedure should I follow if the FAS I’m testing was “passed” last year by another technician, but has deficiencies that weren’t noted? Many jurisdictions have established guidelines and procedures to follow in this instance (if you’re testing in a municipality that subscribes to ASTTBC, you can review their Practice Guidelines). The situation can get complicated if you’re working for the same company as the technician who tagged off on the same deficient system you're testing in the previous year. What you should do in this instance is contact your service manager. Under no circumstances should you tag off on a deficient system without ensuring you either check the “see log and report” or “additional work required” columns (as the situation merits). 4. What procedure should I follow if I discover that the smoke detectors supplied by my company in previous years are not ULC cross-listed to the control panel? See the previous answer. In this instance, you MUST RED TAG the system (alternatively you can replace the affected units with ones that are compatible). You can check if the smoke detectors on the system you're testing are compatible here. 5. What is the correct use of a RED TAG? This happens to be the subject of an ongoing discussion in our General Forum. The answer isn't as simple as the requirement stipulated in ASTTBC's Practice Guildeline and the reason is that there are two inspection standards in Canada which ASTTBC has now been mandated with, the annual inspection standard (which is CAN/ULC-S536), and the verificaiton standard (which is CAN/ULC-S537). Under the former, a RED TAG should be applied to any system that does not provide an adequate level of protection to the occupants and where the building owner has demonstrated reluctance (or has outright refused) to perform the necessary repairs. The exact wording in the Practice Guideline published by ASTTBC is: "For major deficiencies red tags shall be used by the FPT to indicate that the fire protection system or piece of equipment was serviced but does not provide the level of protection for which it was originally designed and installed or the system or piece of equipment has deficiencies that may cause it, during activation, not to operate in the manner to which it was intended. A red tag shall be used to advise and alert the Owner and AHJ that, although the system has been serviced, there are deficiencies that remain on the system or piece of equipment. The tag shall be defaced using a large (preferably red) ‘X’ across the front and on the back. The FPT shall initiate notification to the Owner immediately of any deficiencies regarding the fire protection system(s) or piece of equipment. When major deficiencies exist on the fire protection system(s) or piece of equipment or a combination of major deficiencies are identified by the FPT, and • The Owner, after being advised by the FPT does not take appropriate action, and • When in the FPT’s opinion the public is placed in imminent danger, the FPT shall initiate notification to the Local Assistant to the Fire Commissioner by telephone or in person and document that notification in writing." Examples of the type of deficiency that would merit immediate attention (or a RED TAG if the building owner refused the repair) would include a non-functional bell circuit, incorrectly terminated AC power, inadequately sized stand-by batteries, non-functional initiating devices (i.e. smoke detectors, manual stations, heat detectors, flow switches, etc.), a defective battery charger, use of non-cross listed smoke detectors, improperly labelled annunciator. Under the verification standard however, a RED TAG isn't used on new installations because deficiencies must be corrected (usually by the installing electrical contractor) before a clear Appendix "A" (in some jurisdictions it's a "C") can be issued. A RED TAG could be used on an existing system that exhibits violations such as are noted in questions 1, 4, and above where you are verifying an upgrade or addition. My "test" for use has always defaulted to the LIFE SAFETY aspect and when put in this context, I believe a RED TAG is the "safer choice". 6. What standard do you use when verifying a fire alarm system that was installed thirty years ago? Most of the manual stations are installed well above 1400mm and there are heat detectors mounted on the wall. In Canada, there is only one installation "Standard". It's called CAN/ULC-S524. The Verificaiton Standard (CAN/ULC-S537) is the testing standard. It references the former. You MUST test to both these standards and ensure that you note any "deficiences" or deviations from them. It is not within your job description to "amend" or "interpret" what you see in the field to "fit" the situation. You must not ignore deviations from the standards. Your job is to VERIFY TO THE STANDARDS indicated above (and any appropriate sections of the building and electrical codes). In many older structures, the back boxes were not individually bonded to ground (only two wires - often two conductor 18AWG LVT - was run). Some buildings still utilize a three-wire unsupervised 12 (or 24) volt relay box as a fire alarm control. This unit almost invariably "self resets" when the alarm inititating device is restored to "normal". One manufacturer's senior service rep once advised me that they "verify" to the engineer's drawings. CAN/ULC-S537 does not reference engineer's drawings. Keep in mind that the Verification is the single most important test a fire alarm SYSTEM will have to undergo in its lifetime. It ensures that the SYSTEM has been installed correctly and identifies those deviations from code in older systems that will help the local authority make recommendations (or draft orders) for improvement. TIP: As an approved Verification agency (or an indivdiual recognized by the local authority), you (and you alone) have the final say (and must shoulder the responsibility for) the correct installation of a fire alarm system. If you know you are going to be involved in performing a verification on a particular project, you should contact the contractor installing the system and make yourself available to review the drawings, guide them through the wiring & termination, and make yourself available to answer any questions they might have. In this way, you can also involve the electrical engineer and architect in the consultive process to finalize detector placement and make recommendations with respect to any additional protection that might be required by either the local codes or the Installation Standard. 7. What do you do when you discover a non-compliant system that was installed only recently and verified by the manufacturer (or an individual that was approved by the local authority)? You must notify the local electrical authority and the Fire Department's Fire Prevention Office. Here are examples of some of the installation deviations we've come across recently (keep in mind that in each instance a Verification was conducted by an individual "approved" by the local authority):
8. Should a Verification or an Annual Inspection be carried out on a system that you know to be non-compliant (or that you know will "fail" even before you start)? Where should you "draw the line" (call it a day) and re-schedule? Someone once said "there are no dumb questions, just obvious answers". There are several things that should preclude a reasonable person (or in this case a trained professional) from even starting a Verification or an Annual Test. Obviously if there isn't any power to the panel (or it was displaying a "ground fault") you wouldn't (shouldn't) commence testing until the problem has been rectified. If the panel won't "reset" properly, or is completely unresponsive, testing should be curtailed. You should also not test devices that have been identified as non-compliant such as smoke detectors that aren't cross-listed to the control, or manual stations that do not have (or have never met) ULC Listing requirements. Examples of the latter would include pull stations that only bear a "CSA" mark or that use the round breakable disks which are often replaced with metal washers (Yes, I've actually seen this done!) by building owners because the disks are no longer available or are difficult to source. Performing a Verification on a panel with an active trouble such as an "open" zone or signal circuit is certainly do-able, as long as the Verification doesn't extend to the affected circuit. Should you pass such a system? No! In the example given in question 7 the "approved individual" showed up on the site ready to commence a Verification on three new Notifier fire alarm systems. The common controls all displayed a "ground fault" trouble, yet a decision to proceed with the inspection was made regardless. He also failed to perform the requisite battery tests, didn't identify missing dead-front panels on the power supplies and a number of other errors that actually compromised the LIFE SAFETY of the building's occupants. To add insult to injury, the Strata was billed for a Verification and the company performing the annual servicing succeeded in burying the report for four (4) years before they lost the contract. It was when a new service agency was appointed to perform the annual testing that all of these deficiencies were finally addressed. 9. How can a local authority properly vet (authenticate) a verification report? There are several ways this can be accomplished:
10. What's the correct procedure to use when testing a 347 volt battery pack (emergency light unit)? NOTE: This question is featured on ASTTBC's latest "SUPPRESS" newsletter (issue #11). ASTTBC has our full permission for it's use. This question stems from a discussion I had with another technician recently. WorkSafe BC (and similar organizations in a number of other jurisdictions) stipulate that you may NOT work on live circuitry above 250VAC without their express written consent. In BC, OHS Regulation Section 19.10 (3) states: "Work must not be done on energized parts of electrical equipment associated with lighting circuits operating at more than 250 volts-to-ground without the prior written permission of the Board." What does this mean? Simple. You cannot work on a 347 volt pack while under power. You must use the circuit disconnecting means (turn OFF the circuit breaker) to initiate the standard thirty minute test. You should not attempt to disconnect one of the live leads as I've seen many techs do. This means you must identify those packs that are part of a 347 Volt circuit, and coordinate with building management to shut down power to those areas which are serviced by the equipment while testing or repair is underway. You may wish to review a bulletin issued by the Electrical Safety Authority in Ontario in December, 2009 located HERE. What are the consequences of your not following this direction? Your employer may be held liable for any injuries you might suffer in which case WorkSafe BC may levy a very hefty fine. In addition, your claim for any injuries sustained could be adversely affected. The two important things to remember here is: STAY SAFE! WORK SAFE! 11. How do you tie in (interconnect) door holders on a fire alarm system? Most modern fire alarm common controls manufactured today utilize common "on board" relay contacts that are rated at 24 volts DC. They are designed to interface with a fire alarm communicator for off-site monitoring of trouble, alarm, and supervisory conditions. In many instances, you must provide additional relay contacts to handle things like fan shutdown, fire dampers, etc. 110VAC door holders - Must utilize a 24VDC relay contactor that is triggered by a relay on the fire alarm's common control. Under no circumstances should you run the 110VAC for the door holder into the common control cabinet (although there are a number of older systems out there in which this was perfectly acceptable, electrical codes have changed). You must install the relay contactor into a separate box and ensure you maintain a physical separation between the high voltage and low voltage terminals. The door holders must utilize a 110VAC source that is separate from the fire alarm system. 24VAC door holders - Must utilize a 24VDC relay contactor that is triggered through the fire alarm's common alarm relay as well. You can install a relay block into the common control cabinet, but the door holders must be powered by a 24VAC source that is independent of the fire alarm system. Ensure that the cable entry for the 24VAC into the fire alarm common control enclosure complies with the manufacturer's instructions for non-power limited wires. Signal Circuit Relays - For retro-fit installations (where it may not be possible to run wires all the way back to the common control), Edwards (GE Security) manufactures the only UL/ULC listed signal (NAC) circuit relay module for use on any conventional supervised signal (NAC) circuit. The unit is listed as a "6554 Series Fire Alarm Relay". The relay contacts are rated at 120VAC or 30 VDC, 5 amps inductive, 3 amps resistive. The unit mounts inside a standard two gang (4x4) deep box and comes complete with a appropriately labelled stainless steel cover. You must exercise caution when employing this relay to trip anything other than a door holder. Most new signal appliances don't ring continuously, but are set to pulse temporarly, and some are programmed to silence manually. When either of these circumstances occur, the relay will "follow" the operation of the NAC circuit (in which case things like fan shutdown, elevator recall, fire dampers may not function in the manner required by code). There is a "work-around" for this however. You can employ a latching relay contactor on the circuit. This will require the operator to manually reset the device once the fire alarm system has been restored. In this scenario, appropriate instructions must be posted on the fire alarm control (and/or remote annunciator). 12. How many sprinkler tamper switches can you terminate to a single initiating zone on a fire alarm panel? The magic number is set by your local AHJ, applicable building codes, and standards but averages around eight. Most AHJ's would like to see separate annunciation for each switch or valve within a common sprinkler room and this is often possible with an addressable panel's liquid crystal display (LCD). At the very least, they will insist on having a separate zone for the back-flow preventer which often utilizes two switches (one on the inlet side and one on the outlet side) or the main water entry valve. You must use common sense when laying out your sprinkler zones and the same applies to the control valves inside a common sprinkler room. Identifying a mis-aligned valve (or defective switch) can become more time consuming when they're commoned to a single zone. 13. What procedure should I follow if I am disatisfied with the service or testing of a fire alarm system or fire protection equipment? This is a very complex question because a number of local, Provincial (or State), and professional agencies may be involved in approving or designating an individual (or company) to perform testing and service of life safety equipment. Filing a complaint with the servicing agency is the logical "first step". Typically, deviations in testing procedures are not discovered until an inspection by the local fire prevention office or a verification/audit "uncovers" them, but it must be made clear that you cannot place 100% reliance on either of these methods. If you have concerns regarding a test or service performed by a fire protection company, contacting the professional association under which the technician (or service agency) may be certified is also an option. In British Columbia's Lower Mainland (Vancouver and surrounding environs) this is ASTTBC. In several jurisdictions in Alberta, Saskatchewan, Manitoba and the Province of Ontario, it's CFAA. In the US, most technicians are required to be certified through NICET. 14. Can you review the relevant codes regarding installation of insuite signalling appliances? The British Columbia Building Code (BCBC) reflects a good deal of the Canadian Building Code with a few "twists" here and there (usually for the better). In Vancouver you also have to deal with the Vancouver Building By-Law (VBBL). Then there's CAN/ULC-S524 (The Installation Standard for Fire Alarm Systems). Let's examine some of these codes. Section 3.3.1.5 of CAN/ULC-S524 states that "opens" or "ground faults" on one circuit shall not interfere with the operation of other circuits in the same system. Clearly, the intent of the authors of this section was to preserve the functionality of the system as a whole even if one device (or circuit) was compromised by either of the forgoing fault conditions. This becomes more complicated when it involves signalling appliances located in a suite. The BCBC has relaxed the requirement to employ isolator modules on signal circuits serving residential suites as long as a Class "A" loop is employed and the circuit servicing the suites is separate from the one serving the common hallways. An "open" anywhere in the loop will still allow the other signalling appliances on the same circuit to sound. On the surface this is considered "better practice" as an individual would have to compromise all of the buzzers/speakers in his suite to effectively silence any alarm or announcement tone. If, for instance, he just removed one, any others in the same suite served by the Class "A" circuit would still be fully functional. BCBC (2006) Section 3.2.4.18(10): "Audible signal devices within a dwelling unit or a suite of a residential occupancy shall be connected to the fire alarm system
BCBC (2006) Section 3.2.4.18(11): "In a building or part thereof classified as a residential occupancy,
Unfortunately a "short" condition on the circuit will compromise the entire circuit unless isolators are employed. While BCBC and the Installation Standard doesn't take this scenario into consideration, the VBBL does. Section 3.2.4.18(10) states: "An audible signal device located within a dwelling unit or suite of a residential occupancy shall be connected to the fire alarm system
Vancouver is one of the only Lower Mainland communities to address this very important issue. I believe it is "good practice" to ensure a Life Safety System remains as secure from compromise as we can make it. Clearly, suite isolators should be utilized to ensure the proper functioning of the fire alarm system. You may wish to read a bulletin issued by the City of Vancouver which clarifies their position on the subject here. 15. I work for a national company as an HVAC technician in Vancouver, B.C. We do work for a cellular communications provider that has numerous cell sites on the tops of apartment buildings across the city. Along with the HVAC work, we are also to test the fire alarm systems in these shelters which are monitored by a central control centre in Ontario. I have three questions for you: 1) What kind of personal liability would I take on by performing this work without proper certification? 2) What kind of personal liability would I take on by performing this work with proper certification? 3) What courses are required to do this kind of inspection work in Vancouver? NOTE: This question was originally posted to the CFAA website but wasn't answered correctly. We've decided to publish the correct answer here. CFAA's Webmaster was informed of the error on June 27th, 2009. It's now been and no change has been affected. You may be interested in reading my open letter to CFAA HERE! To perform annual inspection work (to CAN/ULC-S536-04) on any fire alarm system in Vancouver, you're required to be ASTTBC certified in the FA (Fire Alarm) discipline and utilize the approved forms (more comprehensive, alternate forms can be downloaded from our site - located here). The Vancouver By-Law mandating ASTTBC certification has been in effect since 1996. ASTTBC's Practice Guideline should be reviewed as it clearly defines the issue of "liability" as it relates to your job. In order to obtain ASTTBC certification you are required to meet their registration criteria (also outlined in the above referenced Practice Guideline). Vancouver also requires any facility that receives/processes signals from listed fire alarm equipment to be ULC Listed for the purpose AND to be on their list of approved monitoring stations. To perform a Verification Inspection in the City of Vancouver you are required to be an Approved Agency (or individual) and you must follow the procedures established in Bulletin 2000-021-EL. This question brings up another issue, however. In numerous instalaltions of this type the "fire alarm system" amounts to nothing more than a communicator and connected smoke (or heat) detection devices, is usually installed without proper permits, and as a consequence has not been verified to CAN/ULC-S537-04. In many such installations there is NO PHYSICAL CONNECTION to the building's fire alarm system. This is a major concern as most alarms generated by these cell sites are transmitted to proprietory monitoring centres (as indicated in the original question) that are often NOT ULC Listed either. The typical "response" involves the dispatch of a service technician to "confirm" the alarm with NO NOTIFICATION to the building's occupants until this occurs. Should you pass such a system? NO!! (I would go so far as to suggest you read the FAQ involving RED TAGS!) Should an interconnection to the building's fire alarm system be provided? Most definitely (and in every instance), YES! 16. Who's behind the Fire Technicians Network? My name is Frank Kurz. This is my 29th year in the fire prevention & alarm industries. I've done it all. Kitchen system installation & inspections (when I started in the business they still had dry chem systems - blechh-h), fire extinguisher recharges, hydro-testing, computer room Halon system installation & inspections, fire alarm service, inspection & verification, security system installations, inspections & service. For the last fourteen years, I've been running a fire alarm service/verifcation company in Surrey, British Columbia. I sub out my services to electrical contractors and fire prevention companies where my expertise in CCTV, access control, apartment intercom gives them an advantage over single service companies. I've been on Vancouver's list of approved verification agencies since 2001. I've mentored a number of outstanding technicians in my day, and I'm grateful to all those individuals that have shared their knowledge with me as well. I'm always looking for ways to improve on what I do. I figure if I can help my fellow technicians at the same time, then it's a "win, win" situation. I've recently accepted an appointment to the ULC Standing Committees for CAN/ULC-S536 (Inspection Standard) and CAN/ULC-S537 (Verification Standard). I'm also on the "Working Group" for both Standards. New versions of both these Standards are slated for release in the fall of 2011 (I understand they'll officially be known as CAN/ULC-S536-11 and CAN/ULC-S537-11 respectively). This website is an ongoing project of mine. There are no fire alarm manufacturers or other outside agencies involved here (either as sponsors or advertisers). My goal here is to provide a one-stop unbiased resource for technicians engaged in the service, testing, and maintenance of fire protection and life safety equipment. The information presented here may also be useful for those in the fire prevention community and local jurisdictional authorities. The Internet is a powerful tool and I intend to take full advantage of all it has to offer. One such tool is our new RSS Feed which will help you keep abreast of the latest news and developments. The technology to host webinars (online learning seminars) is also something I'm exploring. Some of my fellow technicians (here in the Lower Mainland particularly) have formed a somewhat "less than complimentary" (and that's putting it mildly) opinion of my efforts. I'm investing a great deal of my own time and financial resources into this project. I'm not here to "throw anyone under the bus" (as one individual suggested in the General Forum). I do want to raise awareness of how important the job of "fire protection technician" is and to ensure we're all playing on a "level field" when it comes to skillset and knowledge. This also means "raising the bar" for inspections, testing, service, and installations. Some "players" in the industry will have to refocus their efforts "for the better" and if they succeed in doing so, then we will all win in the end. Those that continue to provide substandard, slip-shod, or irresponsible service don't belong in this profession and good riddance to them (let's hope the door doesn't hit them in the ass on the way out). Feel free to call me ANYTIME if you have questions or concerns, need manuals, or just want to talk. 17. Can you use the forms you can download from this site in other Canadian Provinces? All our forms are based on current Canadian Standards. They are CAN/ULC-S536-04 (Inspection Standard for Fire Alarm Systems), and CAN/ULC-S537-04 (Verification Standard for Fire Alarm Systems). These standards clearly define the minimum acceptable testing criteria and provide the means to document those tests. What I've done is simply format the reports a little differently and add some key sections based on my experience and the frequent questions I get asked from various jurisidictional authorities. I DO NOT believe that anyone engaged in this profession should have to pay for forms although I understand that it's important to STANDARDIZE on a format to make it easy for a building owner (or fire prevention officer) to determine the exact level of protection that's available which will assist them in developing strategies to help improve a project's life safety systems. We are working with various levels of Government to promote our testing format. Don't be surprised when you're referred to this site to get your forms! 18. Can security wires be run with fire alarm wires in Canada? We interpret this question to mean: Can you run fire alarm wire and security alarm wire in the same wire raceway? It’s not common practice for security alarm installers to “mess with” other wiring that’s already in place in a building. That’s not to say that I haven’t seen lots of security wire tie-wrapped to existing conduit runs (or even run alongside the TV cable guy’s wire). Current Electrical Code doesn't allow you to mix the two in the same raceway, however. Keep in mind that many fire alarm systems sold today have the ability to provide zones and circuits programmed for building security components and the new mass notification technology will more than likely result in some significant changes to the Codes on both sides of the border. Always follow good wiring practice when installing/running cable! 19. What kind of signals should a fire pump provide to a building's fire alarm system? Many modern high rise buildings employ fire pumps to augment normal municipal water pressures so that the sprinkler system is able to provide the rated design flow at each sprinkler head. Most modern codes dictate that two conditions regarding the status of the fire pump be monitored by the fire alarm system. They are "trouble" and "activation" (or "run"). The first condition should monitor several aspects: "Overspeed", "power failure" (or bypass/off) amongst them. The second is pretty well self-explanatory. Most "trouble" conditions on a fire alarm system "clear" when the device (or circuit) is restored to normal. When it comes to a fire pump or generator trouble however, this , as well as "activation" (or "run") should be monitored by a latching supervisory circuit as it prompts the user to physically attend the mechanical room to ensure an all clear condition exists (that there isn't an excessive amount of water pooling under or near the pump for instance) and that all the attendant valves and fixtures are in a "normal" condition. More details can be found in a related question HERE. 20. Who has final authority to accept a fire alarm system installation? The answer to this question can be abreviated into three simple initals: A H J (short for the "Authority Having Jurisdiction"). In Canada, on new installations, that is the Building Inspector, the Electrical Inspection Authority (or a combination of both). On renovation/upgrades, it's the municipal Fire Chief (usually in cooperation with the Electrical Inspector). All of these agencies however, rely on one individual's report and written comments before an occupancy permit can be issued. On new installations, not even the Design Engineer will sign off without this all important report. The onerous task of determining whether-or-not a fire alarm system (or a component added to it) meets all the installation and performance criteria is the trained professional technician performing the verification. This individual is the acknowledged expert upon which everything hinges. He is the one charged with ensuring that all aspects of the installation meet the code requirements, applicable standards, and the manufacturer's testing criteria. The verification technician's job is pretty cut and dried. There is no "grey area" in any of the codes or standards that reference a fire alarm system installation. As a verifying authority, it is extremely important for the technician to understand that. No AHJ will dispute your decision to reject an installation that doesn't conform to the standard regardless of whether an Engineer has "designed" it that way, or a municipal "plan checker" has accepted it. Hopefully you will have had an opportunity to discuss what you perceive are issues that may hinder your acceptance of the system well before the final nail is driven and the painting completed. It is for this reason I have always advocated a verificaiton agency gets involved at the start of a job (even as early as the plan acceptance process). Nobody likes "surprises" at the end of a job. Not only are they costly in terms of "correction", the delays they represent could wind up costing the contractor penalties and other associated costs. Additional information can be found here and here! 21. What's the code requirement for battery backup in a fire alarm system that's tied into a a building's emergency generator? Canadian relevent codes/standards are CSA C282, CAN/ULC-S524-06. The answer to this question isn't as straight forward as it would seem. CAN/ULC-S524 accepts a "listed" emergency power generator as long as it can provide the requisite twenty-four (24) hour stand-by (or supervisory) current and then power they system in "full alarm" for the time required as it applies to the building's height and occupancy class. This means that it would be perfectly acceptable to provide only enough stand-by battery capacity to power the system during the "start-up" and "full power transfer" phases of the generator. That's the legal code requirement IF certain other criteria are met. These include the fact that the generator must be monitored for "trouble" and "operation" by the fire alarm system and that the equipment must be listed/certified by an acceptable agency and be installed, maintained and tested in accordance with the code requirements and the manufacturers instructions. The forgoing represents the "correct" answer to the question but let's not "stop" there.. Can you depend entirely on this method? There are a number of other considerations that must must be factored into this answer which often creates the "confusion" people encounter when they get different "interpretations" from individuals that represent the various agencies and stakeholders involved. Some will go strictly with the code/standard requirements while those of us in the LIFE SAFETY profession tend to go with something called "best practice". You'll often see these two words used when a particular code or standard lends itself to more than one interpretation, and you'll also see them used when a question has more than one "right answer". "Best practice" simply means utilizing the best, safest, and most effective method (or solution). Let's look at some basic facts. An engine driven generator comprises a miriad of moving parts that are all required to work in concert to achieve the end result. A failure of any one part could mean that either the generator won't start, or it will fail to deliver the rated power to the transfer switch. The transfer switch is another mechanical device in the line to the emergency power distribution centre. The generator depends on a source of fuel which could comprise a large storage tank for diesel fuel or a direct connection to a local gas main (if the engine has been set up to use natural gas). The quality of the maintenance, age of the equipment, servicability of the charging system, starter batteries, quality and quantity of available fuel... The list goes on. A breakdown anywhere in this "chain" will result in the failure of the emergency power system to deliver the the required stand-by capacity stipulated by the standard. The "clincher" in all of this is that most emergency power systems (unless they are in a health care environment) only provide sufficient capacity to meet the Building Code requirement of "at least two hours" - Section 3.2.7.9 of BCBC 2006 - "Emergency Power for Building Services" (other Provincial Codes should have similar wording). The fire alarm system is seldom factored into the equation. "Best practice" would favour a simpler solution and eliminate the "assumptions" you are often forced to make surrounding the proper care, maintenance, and operational readiness of the generator (a "trouble free" annunciator should never be the basis for assuming the generator will work). The stand-by battery - properly sized - affords the most cost effective, simplest, and SAFEST method of ensuring the fire alarm system meets the requirements of the standard. 22. Does the fire alarm circuit breaker have to be painted red and "locked"? In many cases this is a jurisidictional requirement. There is nothing in either the Provincial building code or CAN/ULC-S524 (Installation Standard for Fire Alarm Systems) that actually stipulates it must be painted "red". You have to look in the Canadian Electrical Code to find it (specifically Rule 32-108). The fire alarm system's circuit disconnecting means must be easy to identify. There are several reasons for this, the most important being that we don't want it inadvertently turned "off". 23. An Electrical Engineer is insisting on locating conduit entries for the common control data, communication, and addressible field devices into an area of the cabinet that the manufacturer's installation instructions stipulate is reserved for non-power limited wire (AC and municipal tie). Can you review the requirements of CAN/ULC-S524 (and relevant codes) and advise? Sure. There are a couple of standards this Engineer should reference: CAN/ULC-S527 and CAN/ULC-S524-06. The latter's section 3.4.10 states: "Field wiring entry points for the various circuits and required circut separations, shall be in accordance with the manufacturer's installation instructions and CSA C22.1, Canadian Electectrical Code, Part 1, Safety Standard for Electrical Installations, Section 12, Wiring Methods." The manufacturer's installation instructions are presented in the documentation accompanying the fire alarm panel and usually references diagrams indicating specific wiring entry points and termination procedures. The concern here is that power limited wire will enter an area of the common control which has been designated for non-power limited wire. It is doubtful that a panel terminated in this fashion will pass the verification. NOTE: It's been pointed out to me that Canadian Codes do not recognize "Power Limited Circuits". While this is true, I believe that it's considered BEST PRACTICE to follow the recommendations of the manufacturer (or the specific instructions presented in the relevant wiring and installation instructions) when determining your wire entry points and common control wire routing. What you should do: Suggest to the Engineer that wire entry points into listed control equipment must be in accordance with the manufacturer's installation instructions. I would suggest that you do this IN WRITING and back it up by attaching the relevant sections of the code/standard and any other supporting documentation (i.e. copy and include the pages from the installation manual that indicate the proper cable entry locations). This way, when the "doo-doo" does hit the fan, nothing should wind up "sticking" to YOU! 24. How many initiating devices can you have on a fire alarm system? For the answer to this question, we'll have to deal with a number of different factors. Wire size, type of devices (i.e. whether they derive power from the circuit as is the case with two wire type smoke detectors), distance to the end of line resistor, whether or not the cable you're using is shielded, etc. As you can see, the answer isn't as cut and dried as you might have thought. The manufacturer usually imposes limits on the number of two-wire smoke detectors you can wire to an initiating circuit. In my experience that usually averages between 20 and 30. Contact type devices such as manual pull stations, heat detectors, flow switches, sprinkler valve tampers, etc. don't draw power from the panel so (in Canada) you're only limited by CAN/ULC-S524 Section 3.4.3 "The voltage drop and power dissipation on any circuit shall not prevent the proper operation of that circuit and shall be in accordance with the manufacturer's installation instructions." Keep in mind that "best practice" may suggest you consider adding additional initiating zones along with those extra detectors (particularly if the job involves new construction). Not only will this help you trouble-shoot a potential problem, the responding authority will have an easier time as well. 25. What's the difference between a supervisory alarm and a trouble signal? A "trouble" indication on a fire alarm system represents a problem that may adversely affect the operation of the system (as a whole). In most cases, this must be addressed by trained service personnel. Examples of a "trouble" signal are: AC power failure, battery trouble, ground fault, indicating circuit "open", signal circuit "short" or "open". A "supervisory" signal is an "off normal" indication of a monitored device. In most cases this type of signal doesn't require the response of trained service personnel. Restoring the monitored device to "normal" and resetting the fire alarm system usually clears this type of indication. Examples would be: sprinkler "low air", sprinkler "low water", generator "trouble", fire pump "trouble", movement of a sprinkler valve handle, heat trace power failure (or common trouble), etc. It is important to remember that a supervisory signal often triggers a relay in the fire alarm's common control that is separate from the "trouble" contact. You must ensure that any off-site monitoring connections take this into account. 26. Which code references CAN/ULC-S537 (Standard for Verification of Fire Alarm Systems) thereby making it a legal document? First of all, the referenced standard (as well as the other applicable standards) represents the collaborative effort of several committed individuals that hail from a variety of backgrounds and disciplines. Some work for fire alarm manufacturers, engineering firms and local building inspection authorities. Most are volunteering their expertise and their time. CAN/ULC-S537 represents the minimum acceptable criteria for the testing and commissioning of a fire alarm system. In Canada, Provincial Building Codes primarily reference both CAN/ULC-S524 and CAN/ULC-S537 in their requirements for the installation of a fire alarm system (which also demonstrates how a "standard" becomes "accepted" or "legal"). In British Columbia, BCBC (2006) Section 3.2.4.5 is titled "Installation and Verification of Fire Alarm Systems". BCBC (2006) 3.2.4.5 (1) "Fire alarm systems including the voice communication capability where provided, shall be installed in conformance with CAN/ULC-S524, 'Installation of Fire Alarm Systems'." BCBC (2006) 3.2.4.5 (2) "Fire alarm systems shall be verified in conformance with CAN/ULC-S537, 'Verification of Fire Alarm Systems', to ensure they are operating satisfactorily." 27. Who can verify a fire alarm system (in Canada)? What qualifications should they have? AHJ's all across Canada have been deliberating over the definitive answer to this question for years. CAN/ULC-S537-04 states that the verification must be carried out by an agency (or individual) acceptable to the Authority Having Jurisdiction and who is not the installing contractor or involved in the design of the fire alarm system. CFAA has published a position paper on the subject which attempts to establish the means by which an AHJ might formulate their own criteria, but it relies heavily on promoting expansion of their own organization across Canada (which may not actually be a "bad thing"). It is a sad fact that some manufacturer trained technicians are often ill prepared to actually identify even their own incorrectly installed fire alarm equipment (or the required wiring), let alone flag an installation as "unacceptable" which might jeopardize an established business relationship with the contractor (or Professional Engineer). It has been our experience that a good proportion of them are more concerned with ensuring the system is properly programmed (the software required has become even more complex with the introduction of "mass notification" requirements and the firmware changes this has prompted). Many local authorities have adopted their own criteria when it comes to designating approved verification agencies and "acceptable" individuals. The City of Vancouver has taken the lead in this issue and defined not only the minimum acceptance criteria, but have actually listed individuals and organizations whom they deem to be acceptable to provide commissioning and verification of fire alarm systems in their Bulletin 2003-009-EL. We however view this list as the necessary "first step" in the journey towards establishing acceptance and professional certification. Membership in a professional organization like CFAA or ASTTBC may provide some addtional recognition, but until these organizations start supporting the individuals they certify through the "continuing education" which they promise (but seldom deliver) and provide the means to rigorously police their membership, verification inspections will continue to fall short of the standard. We've suggested several means to help an AHJ in determining the means to "vet" a verification test report. You can explore these options here and here. ULC has also issued a Standards Bulletin which may prove helpful as well. 28. How many times is a fire alarm system verified (or how many times can a fire alarm system be verified)? A fire alarm verification inspection is normally conducted when a newly installed fire alarm system is commissioned. There are some additional provisions within CAN/ULC-S537 (Verification Standard for Fire Alarm Systems) and Provincial Fire Codes that will trigger the requirement for a verification or special audit however. These can include additions or modifications to an existing fire alarm system, replacement of components such as booster power supplies, the common control's motherboard, zone expansion modules, control circuits, annunciators, and initiating or indicating appliance modules. Replacement or repair of any system wiring will also trigger a verification but this is usually limited to the affected devices on that zone or circuit. On rare occasions an order by the Authority Having Jurisdiction may require the building owner to have the fire alarm system verified (a recent incident involving several grow-ops in an apartment building comes to mind). 29. CAN/ULC-S536-04 (Inspection Standard for Fire Alarm Systems) 2004 Edition introduces some significant changes to the way conventional and addressable fire alarm panels are tested. Are you required to adopt these changes? How will they impact testing times and ultimately, the building owner's costs? The changes to the testing standard are significant in one major respect. They will increase the time required to perform the annual test and inspection on all supervised and addressable fire alarm systems and ultimately impact the cost to the building owner for the service. If you are either a CFAA certified or ASTTBC registered technician you must incorporate the changes in the Standard in your testing procedures. If either you or your employer is reluctant to do so you are not conforming to the Standard and may well invalidate the test. TIP: Our forms reflect the most current version of the Standard. CONVENTIONAL SUPERVISED FIRE ALARM SYSTEMS: Section 5.7.11 is entitled Conventional Circuit End-of-Line Device and requires you to test each input circuit and output circuit end-of-line devices for open circuit (supervision), short circuit (alarm or supervisory), and ground fault conditions. You must, furthermore record the results of each test in the inspection report. What this means is that you will have to FIND every end-of-line device (it's usually mounted on a single gang plate which is appropriately labelled), and drop it to perform your tests. This will add approximately ten (10) minutes for every zone on the system. On older systems, you may have to hunt for them as they may have been mounted behind the last device in the circuit and not on an identifiable plate. You must list each device in the test record along with its location. The number of end-of-line devices should match the number of active zones on a conventional fire alarm system. TIP for PMA Sales Staff - You can easily calculate the additional time required to complete the annual inspection by counting the number of conventional zones displayed on the common control panel and multiplying by 0.2 (Example - Your panel has 30 initiating and signalling circuits. The time to test the end-of-line devices would be 30 X 0.2 = 6.0 Hours). Note: You should allow for some additional time if the locations of the end-of-line devices are not readily apparent or you can't determine how many signalling circuits there are on the system. Tech Tip: Since you have to drop each end-of-line device to perform the required testing above, I would also suggest that you record the VOLTAGE at each device at the same time. This will enable you to identify potential problems on the zone (if the voltage changes dramatically from one year to the next). It will also assist you in determining if circuit powered devices (like smoke detectors) are receiving their rated voltage and that the voltage drop from the panel is within the manufacturer's specifications. ADDRESSABLE AND LARGE NETWORKED FIRE ALARM SYSTEMS: There are some additional tests required specific to these types of systems. These include: "5.6.2 - Where fault isolation modules are installed in data communication links serving field devices, wiring shall be shorted on the isolated side, annunciation of the fault confirmed, and then a field device on the source side shall be operated and activation confirmed at the control unit or transponder. 5.6.3 - Where fault isolation in data communication links is provided between control units or
transponders and between transponders, introduce a short circuit fault and confirm annunciation of the
fault and operation outside the shorted section between each pair of: This means that the testing technician must be able to locate and identify the applicable fault isolation modules. Most have an LED placed prominently on the face of the cover plate, but some (like the GE Security SIGA-IM) have no discernable indicators (when mounted on 4X4 boxes with covers). It's been fairly common (in installations I've seen) that the modules are located inside one of the main control cabinets (or in a cabinet mounted adjacent to it). Where are other isolator modules located? Look for them either mounted in a 4X4 box next to the common control or as the first device on a specific floor. TIP for PMA Sales Staff - You should deal with fault isolators the same way you would with the end-of-line device tests unless you can confirm that they're all located in a central location (or cabinet). In the latter instance you can use a 0.1 multiplier to determine the additional time required. In order to comply with Section 5.7.11, you must first identify all conventionally terminated monitor modules. These are predominately located in the building's sprinkler room and used to supervise alarm valves, flow switches, and tamper switches on sprinkler riser valves, fire pump valves, back-flow preventers, and the like. You should also check stairwells for valves and flow switches. Monitor modules are normally mounted on 1110 or 4X4 steel boxes. Some (but not all) will be identified with the zone and circuit numbers on the plastic (or metal) covers. TIP for PMA Sales Staff - Chances are that a review of the previous inspection report will identify the specific conventional type devices that were tested. While it's not always "a given" that each valve or supervisory device is individually zoned, for the purposes of a "rough calculation" you would be safe in assuming so. Use the same formula given in the Conventional Panel TIP. TECHNICAL NOTES: What should you do if the end-of-line resistors don't report a ground fault condition? You will record the results of your testing on the individual device test record. If you observe that the back-box isn't properly grounded, you could expect that the test for ground-fault won't yield the required result. On some older systems, only two conductor wire was often run to each device. Does this deserve a RED TAG? No, however, if the system was installed after 1992 (when grounding of back boxes was first required in the CAN/ULC-S524 Installation Standard), then this should be recorded as a deficiency. What if the end-of-line resistor isn't mounted on a proper plate (in some instances it could even be located in the last device on the circuit)? You must record your findings on the indivdual device test record and (in instances where there are two or more devices on the circuit), you should also make recommendations that the resistor be relocated to a proper mounting plate next to the last device on the circuit. 30. Are there any fire alarm relays listed for tripping from a notification circuit? As a matter of fact, there is! It's manufactured by GE Security/Edwards and it's listed as a "6554 Series Fire Alarm Relay". The relay contacts are rated at 120VAC or 30 VDC, 5 amps inductive, 3 amps resistive. The unit mounts inside a standard two gang (4x4) deep box and comes complete with a appropriately labelled stainless steel cover. You must exercise caution when employing this relay to trip anything other than a door holder. Most new signal appliances don't ring continuously, but are set to pulse temporarly, and some are programmed to silence manually. When either of these circumstances occur, the relay will "follow" the operation of the NAC circuit (in which case things like fan shutdown, elevator recall, fire dampers may not function in the manner required by code). There is a "work-around" for this however. You can employ a latching relay contactor on the circuit. This will require the operator to manually reset the device once the fire alarm system has been restored. In this scenario, appropriate instructions must be posted on the fire alarm control (and/or remote annunciator). 31. "I'm concerned with the attached fire alarm Verification Report. It doesn't remotely resemble another report we received on a similar project we manage in Burnaby. What should we do, and whom do we contact to give us the proper information?" Here's a portion of my response: What's the proper format for a verification report? Reference the Appendix in the Verification Standard - CAN/ULC-S537-04 (alternatively, you can go to our forms page). If the report in front of you doesn't comply with either of these suggestions, then the verification is DEFINITELY NOT VALID! 32. What is a Fire Alarm Verification Certificate? This is a document provided by most fire alarm manufacturers following the commissioning/verification of a new fire alarm system. As it isn't specified or identified (hence not required) in any part of the Standard for the Verification of Fire Alarm Systems (CAN/ULC-S537-04), it's not normally my practice to issue one. I must admit that some certificates I've seen are nice enough looking to be considered "art" (you could even have them professionally framed). The fact that it's mostly manufacturers that have adopted the use of certificates, some Engineers and Architects actually NEED one before they will sign off on their project (and that's just one of those times when you've gotta "go with the flow"). 33.Can you explain how a fire pump controller should be connected to a fire alarm system? A fire pump controller provides the means to actuate, test, and service this vital component of a sprinkler system - most usually located in high-rise apartment, large warehouses, and office buildings. Controllers feature a set of indicator lamps that tell you the status of the fire pump (it's usually mounted in the same room as the pump but in some instances the sprinkler room is too small or there's a risk of flooding which means you'll have to find it). There's a "power on" lamp, a "fire pump running" lamp, and additional "trouble" indicators depending on what the manufacturer may decide to include. There are two types of fire pumps: engine driven and electric. Both technologies controllers employs a sensing line. A sudden drop in pressure in the line (caused by the actuation of a sprinkler head) will trigger a switch in the controller which will turn on the fire pump. The pressure in the sensing line is maintained at a higher level than the normal static water pressure in the system by a "jockey pump" (which employs it's own separate controller). This prevents the inadvertent actuation of the fire pump if there's a drop or a spike in the supply pressure. There are normally two supervised outputs on a fire pump controller. One is activated when the pump is "running", and the other if there is "trouble" condition. There may also be a third output called "phase reversal" (but typically on older controllers, this is routed through the common "trouble" output). All should be monitored by separate latching supervisory circuits on the fire alarm control panel. 34. What's the maximum mounting height for a fire extinguisher? That all depends on the SIZE of the extinguisher. NFPA 10 (2007) is the reference standard in North America and it states: "6.1.3.8.1 Fire extinguishers having a gross weight not exceeding 40 lb (18.14 kg) shall be installed so that the top of the fire extinguisher is not more than 5 ft (1.53 m) above the floor. 6.1.3.8.2 Fire extinguishers having a gross weight greater than 40 lb (18.14 kg) (except wheeled types) shall be installed so that the top of the fire extinguisher is not more than 3.5 ft (1.07 m) above the floor." And don't forget one other proviso: You must maintain a clearance of at least 4 inches (102 mm) between the bottom of the extinguisher and the floor. 35. What should a Fire Alarm Verification Test Report include? The basic documentation that must be provided for any Fire Alarm Verification performed in Canada is outlined in the Standard for Verification of Fire Alarm Systems - CAN/ULC-S537-04. Local authorities may require additional documentation or may require you to submit an amended Appendix "A" form (as the City of Vancouver has done in Bulletin 2000-021-EL). Our forms happen to be based on this bulletin (I am, after all, based in Vancouver). More "universal" Canadian forms are in the works though. The primary difference centres around the Appendix "A" document. The forms currently avaiable HERE don't include signature lines for the Design Engineer, Contractor, and supporting technician (but are in the works). 36. The monthly test of my fire alarm system requires me to check the stand-by battery (terminals and general condition). To do this, I have to remove the panel's dead-front. This has a rather large warning sign that states I should disconnect all sources of power before attempting to remove it for service. How can I safely do this? Contact your fire equipment service provider and request that they provide you with the necessary detailed information that will enable you to perform this function. If you're still uncomfortable with the thought of removing the dead front, or have other concerns relating to the required montly testing regimen, it may be possible to have them perform the service for you. Many fire safety companies provide this on a reduced fee basis (if it's done as part of an annual agreement). WARNING! On many older panels (and even some incorrectly installed newer ones) there is a distinct probability that high voltage AC (110) is terminated to some of the common control relays. Removing the dead front on these panels may expose you to an unacceptable level of risk and as such might be the case this should only be performed by trained technicians. You should make a notation in the monthly log to this effect if you are uncomfortable with performing this task. 37. What's "the Code" say about monitoring sprinkler valves and systems (generally)? Ths question has been reworded somewhat from the one entered into Google which was: "whats the fire code to monitor tamper switches grouped together". I hope I've interpreted it correctly. There are several Sections that cover the monitoring of sprinkler devices (most of which are derived from the Canadian Building Code so the section numbers should be identical across most Provincial/Territorial Jurisdictions). 3.2.4.7(2) reads: "A fire alarm system that includes waterflow-indicating devices shall be designed to notify the fire department in conformance with Sentence (4) when an alarm is initiated." 3.2.4.7(4) reads: "Notificaiton of the fire department, as required by Sentences (1), (2), and (3), shall be provided in conformance with CAN/ULC-S561, "Installation and Services for Fire Signal Receiving Centres and Systems." 3.2.4.9.(2) states: "An automatic sprinkler system shall be electrically supervised to indicate a supervisory signal on the building fire alarm system annunciator for each of the following: a) movement of a valve handle that controls the supply of water to sprinklers, 3.2.4.9.(3): "Indication of a supervisory signal in accordance with Sentence (2) shall be transmitted to the fire department in conformance with Sentence 3.2.4.7.(4)." Then there's 3.2.5.12 (1) which reads: "If a fire alarm system in a building is required to have an annunciator by Sentence 3.2.4.8.(1), except for hose valves, all valves controlling water supplies in a standpipe system shall be equipped with an electrically supervised switch for transmitting a trouble signal to the annunciator in the event of movement of the valve handle." 38. Can you use a cable jack for Shaw Digitial Phone? This relates somewhat to a TIP we posted regarding fire alarm communicators. Shaw's digitial telephone service (as with Rogers "back East") utilizes bandwidth on their cable television signal. When you order the service, the Shaw/Rogers technician will install a specialized cable modem which he will connect to a cable outlet that is convenient to the main telephone drop. This makes it easy to facilitate connection of all the phone jacks in the premises. Any cable outlet will do. Can you move the service to another location? Yes as long as it's on the same provider's backbone (Shaw modem to Shaw outlet, Rogers modem to Rogers outlet). You should be aware that there is limited phone service available in the event of an extended power failure. The onboard battery (within the cable modem) is only designed to provide backup for a period of four to six hours. If you're using this method as a means to facilitate communication between a fire alarm system and a central monitoring facility, you will NOT meet the code requirement for stand-by capacity. Many jurisidictions will not accept VOIP service for this reason. 39. If I change a fire alarm device, do I need a verification? That depends on the "fire alarm device". If you're swapping an inoperative smoke detector with a new one (of the same manufacture and model number), the answer is "no" (please make sure the new detector is compatible with the common control as the unit you're replacing may not be - I have been called in to service a number of systems where incompatible smoke detectors have managed to "find" their way onto the system over the years). If you're "upgrading" a heat detector to a smoke detector, the answer is "yes". The answer's the same if you go the other way (changing a smoke to a heat). What you're doing in this instance is changing the parameters by which the system was originally designed. This not only requires a verification, it also requires the permission of the jurisdictional authority. If you're changing an annunciator, this will trigger the requirement for a system wide verification. If you're changing out panel components, this may also trigger a system wide verification. In the case of Vancouver (where I work), the Electrical Inspections Department has clearly defined this answer in their Bulletin 2000-021-EL. 40. Where should a fire alarm control panel be installed? The simple answer is: "Someplace warm and dry". Fire alarm panels are usually located in a central INDOOR location so that the building occupants and first responders can easily access the various control functions such as exhaust and pressurization fans, elevator recall, door holders and release mechanisms, etc. In large buildings, it helps to have this at or near the main entrance so that the TROUBLE, SUPERVISORY, or ALARM information can be quickly discerned and the appropriate response or action(s) determined. Many common controls are located in the main electrical room in which case they would employ some form of remote annunciation at or near the structure's main entrance. In all cases, access to the control functions must be restricted to authorized personnel through the use of cabinet locks or (for some of the higher level functions) passcodes. Section 3.2.4.8 of the British Columbia Building Code states: "Except as permitted by Sentences (3) to (5), an annunciator shall be installed in close proximity to a building entrance that faces a street or an access route for fire department vehicles that complies with Sentence 3.2.5.5.(1)." 41. How do you add an isolator module to an existing fire alarm panel? The answer to this question is in the instruction sheet that usually comes with the unit. This also includes a wiring diagram which identifies the terminal connections for you. If you're adding an isolation module to either a Chubb/Edwards (formerly GE Security) or Simplex addressable system SLC (or data) loop, it will require a change in the software to properly identify the unit. Mircom, Secutron, FireLite, Notifier, and Potter utilize "dumb" loop isolators. That means there's no "smarts" in them, just a simple relay and circuitry to identify a "low" or "short" condition on the output. Notification (bell) circuit isolator modules are also "dumb" devices and don't require any special programming to install. Remember that (in Canada a least) the addition of any device on a circuit will trigger the requirement for a Fire Alarm Verification Inspection! 42. Who can perform a hydro-static test on a fire extinguisher (in Canada)? In Canada, facilities that are engaged in the performance of any hydro-static testing of pressurized cylinders (this includes low pressure dry chemical fire extinguishers) are required to be registered with Transport Canada under regulations outlined in the 2002 version of CSA B339. Staff in the employ of these certified agencies must undergo regular requalification under the requirements of the Transportation of Dangerous Goods Regulations. For more information, click HERE. To find a registered Cylinder Requalifier (or to search Transport Canada's database to see if a specific service provider is properly listed), click HERE. Following a successful test, Transport Canada requires a tamper-proof label be affixed to the extinguisher which details the date of the test, provides the name of the testing agency, and the test pressure to which the cylinder was exposed. A sample label is provided courtesy of Royal City Fire Supplies Ltd. (and is used with their permission):

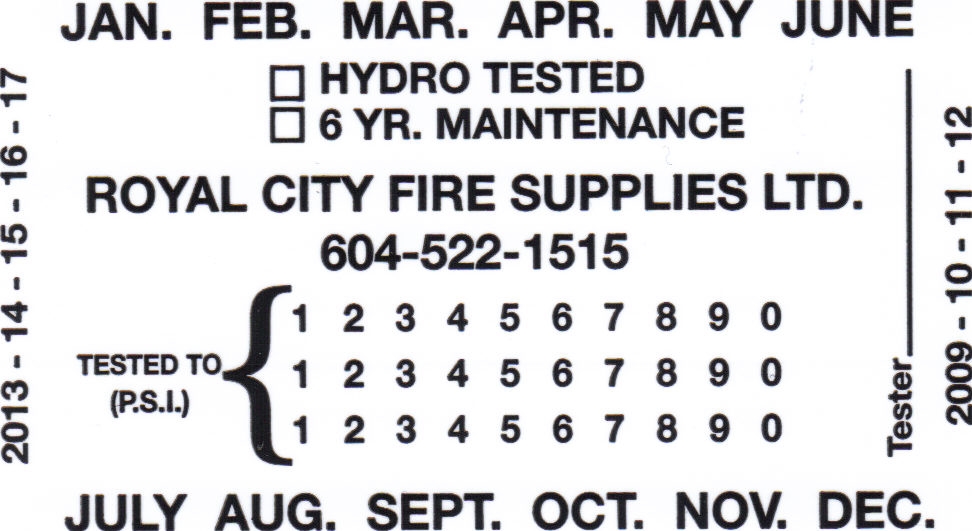

NOTE: Unregistered agencies (or companies) which perform hydro-static testing service are doing so in violation of the regulatory authority. The application of a label similar to the one shown by such an unregistered company would render any such testing INVALID. Tech Tip: If you are performing an annual inspection on a fire extinguisher, you must ensure that the company or agency whose name appears on the hydro-test label (or whose stamped ID is on the neck of a CO2 extinguisher) is properly registered. If you find that this is not the case, you must arrange to remove the extinguisher from service and have it properly tested. 43. Can any fire alarm technician test a fire pump? NOTE: "Any" is a word that could suggest a "trainee" technician and for the purpose of providing a suitable response, I'm going to assume that the fire alarm technician that will perform the testing is familiar with (and has some training on) the operation of the specific fire pump controller that will be the subject of the test. A fire alarm technician's "testing" of a fire pump is usually limited to simulating a failure of the primary controller and initiating a "run" cycle to ensure the appropriate supervisory signals are received by the fire alarm control and any connected remote annunciator(s). The failure simulation is usually accomplished by using the circuit disconnect means on the controller. It's been my experience that the testing of the fire pump is usually coordinated with the testing of the building's sprinkler systems. Fire pump testing involves performing flow and pressure tests which entails the use of specialized equipment and training which isn't something most fire alarm technicians are capable of doing. Normally, it's the building owner's responsibility to "run" the fire pump on a monthly basis to prevent damage to the impeller and related equipment from corrosion. If it's impractical to perform both annual tests (fire alarm and sprinkler) concurrently, the monthly "run" test is a good option that will actually confirm correct indication is received at the building's common control and annunciator(s). 44. Is it permissible to have different audible signal devices in the same building? In Canada, the National Building Code as well as the BCBC appears to be fairly silent on this issue (I'm pretty sure that other Provincial Codes don't specifically address this issue either). You have to go to CAN/ULC-S524-06 (Standard for Installation of Fire Alarm Systems) for the answer. Section 5.4.1.7: "Audible signal devices within a building shall generate similar sounds and sound patterns when activated." Are there exceptions? Yes. Insuite sounders are often found on fire alarm systems that employ bells or gongs in the common area spaces of a residential building. The interpretation most Verifying Agencies place on this section is that you can't "mix" alarm sounds within a building's public spaces (you can't put up horns with bells in the hallways, parkades or common areas). It's interesting to note that a larger number of Architects and Design Engineers are moving more towards employing horns and non-silenceable buzzers in public corridors and areas instead of the standard red fire bell. Not only do they meet (and often exceed) the required sound pressure levels, they're far more attractive and less prone to tampering. If you wish to change out a buildings existing bells (upgrade them to horns/buzzers), you must engage in a consultative process between the local AHJ and a Design Engineer (who will ensure the spacing requirements and sound pressure levels meet the current installation standard). 45. What is the maximum height for a fire alarm pull station in Vancouver? CAN/ULC-S524-06 is the Standard for Installation of Fire Alarm Systems and Section 5.2 is entitled "Manual Stations". Provincial Building Codes and the Vancouver Building ByLaw (VBBL) both reference this Standard so, in Vancouver (as well as the rest of Canada): Sentence 5.2.1 reads: "Manual stations shall be installed not less than 1200 mm and not more than 1400 mm above the finished floor level measured to the centre of the manual station." What if you're replacing an existing manual station that's not installed to the current standard? In many buildings more than thirty years old, some manual stations are of the old style disk type which aren't even ULC Listed. In many instances, these units are often found on equally archaic three-wire unsupervised twelve volt fire alarm systems. None of these installations could be termed "deficient" as they probably met the Code requirements of the day. Replacing a defective manual station (as with any other similar fire alarm device) is a maintenance issue and not an installation one. Tech TIP: In older buildings, you can't do much about the mounting height (without extensive cosmetic damage to the wall), but you can do something about bringing the fire alarm system more into compliance by recommending the owner change out non-listed bells and manual stations with units that are ULC Listed. Such a recommendation should be noted in the "Comments/Remarks" section of your annual test report. It may be prudent for you to also submit a copy of your report to the local Fire Department's Fire Prevention Office who may follow-up on it with a site visit to determine the suitability of requiring the owner to (at least) update the affected devices. 46. I'm an electrical contractor working in Vancouver on a fire alarm upgrade. We're installing an addressible fire alarm system from a well-known manufacturer with a local office. The subject of wiring for devices attached to the SCL loop as well as the remote annunciator required some clarification from the local rep, who advised that it was perfectly acceptable for us to use non-shielded cable for both. The rep went on to say that since the run to the annunciator is so short, we could even use a single five conductor 18AWG unshielded fire cable to terminate both power and data runs with no difficulty. My question is: Will this pass the verification test? The installation manual calls for twisted shielded pair to be used on the RS-485 communications loop for the annunciator. Whenever I get asked this question (and whenever I SEE something like this), I see RED! A manufacturer's REP (or technician) counselling someone to deviate from the installation instructions should be (in my considered opinion) automatic cause for their immediate dismissal. What troubles me even more is the possibilty that the system may be verified by the same indivdual that counselled the deviation in the first place and that, very often, the local branch office isn't aware of (or - in the worst possible case - might even turn a blind eye to) this dangerous practice. If you choose to follow the rep's advice, you may be exposing yourself to an unacceptable level of personal liability (try to envision the robot in the series "Lost in Space" frantically waving his arms and shouting: "Danger Will Robinson! Danger!"). The installation instructions forms part of the submittal required by ULC of the manufacturer in order to certify the equipment for use in Canada. Deviations from these instructions cannot be authorized by anyone other than ULC (and only after the subject equipment has been resubmitted for testing under the specified condition). Now some readers may be ready to point out that the "Authority Having Jurisidiction" could authorize such a deviation, but I have yet to see this happen (in my almost thirty years in this business). This kind of thing amounts to (at the very least) a "triple whammy" as you would be violating two (2) major ULC Standards and Section 3.2.4.5 of BCBC (2006) (in the case of Vancouver it's the VBBL). Appendix B (B.1) of CAN/ULC-S524-06 (Fire Alarm Installation Standard) notes: "... Some Manufacturers may have requirements specified in their wiring installation drawings which may differ from those stated below and, where they differ, the manufacturer's requirements should be followed: ..." (underlined for emphasis). CAN/ULC-S537-04 (Fire Alarm Verification Standard) states in Sentence 3.3.3.1: "Wiring extending beyond a control unit or transponder shall be inspected at all system termination points to ensure that the wire type and gauge is in accordance with the equipment manufacturer's installation wiring requirements. (Refer to Appendix C3, Field Device and Related Circuits - Test and Inspection)" 47. Can fire alarm wiring be painted? Exposed fire alarm cable (free air run) isn't allowed by any modern code or standard. This doesn't mean that it's not "out there" (such an installation may have met the "requirements of the day" on older installations). Painting fire alarm cable will alter it's tested flame exposure characteristics and may even contribute to more rapid spreading of a fire. In fact, you really shouldn't paint any exposed wiring in a building (for the same reason). Fire alarm cable must be protected from physical damage and as such is always run inside rigid EMT conduit or flexible "BX". You can paint either with no appreciable adverse affect. 48. What are the rules for monitoring sprinkler heat tracing on a fire alarm system? Our Glossary defines HEAT TRACING as: A specially designed heating element comprised of a coated wire which is wrapped around exposed domestic or WET SPRINKLER SYSTEM piping and is thermostatically controlled to prevent the water in the pipe from freezing. HEAT TRACED piping is usually insulated with glass fibre. In parkades or other exposed locations, tears or other damage to the insulation material (or covering) should be investigated and repaired. Loss of power to the HEAT TRACE CONTROLLER should result in a supervisory trouble signal on the FIRE ALARM SYSTEM and often only requires a RESET of the system once power is restored. The definition above specfically identifies something called a "heat trace controller". This device performs a number of tasks. It supervises the special heater wire (used to protect vulnerable sprinkler piping against freezing) for shorts, opens and ground faults (similar to what a fire alarm control does). It also interfaces to a thermocouple which is positioned into the environment that poses the greatest freezing hazard the sprinkler piping will be exposed to. This enables the controller to monitor the ambient temperature and ensure an appropriate response (in this case turning "on" the heating element) is initiated. A failure (or other trouble condition) triggers a relay contact that will initiate a supervisory alert on the fire alarm control or other output type device. The "heat trace controller" is a critical element in maintaining the integrity of the sprinkler system. Some contractors working outside of jurisdictions that have actually mandated the use of these devices (and to save on the trouble and expense of an actual controller) have opted to use "self regulating" heater cable available through most home hardware stores and which normally plugs into an electrical outlet. This has lead to "modifications" where 110VAC relays supervise the power to the cable but nothing else. In order to head off such work-arounds Vancouver has adopted a very rigorous set of rules in their Bulletin 2000-016-EL/PL. It serves as one of the finest examples in which two separate disciplines (electrical and plumbing) actuall work together to achieve a higher standard. The real answer to this question relies heavily on that term best practice. The fire alarm system should be monitoring a "heat trace controller" which, ideally, provides the means to supervise all the working elements of a sprinkler heat tracing system so as to ensure optimum occupant life safety. 49. Do you require a class "A" circuit for a fire alarm emergency communications riser (in Canada)? Usually "no". There is no actual requirement to employ a Class "A" circuit in this application. Division "B" Appendix "A" of BCBC (2006) states: "A-3.2.4.18.(10) Signal Circuits. Clause 3.2.4.18.(10)(a) permits Class A wiring, or Class B wiring with signal circuit isolators located outside of the suites, to serve audible signal devices within residential suites." The "key" component in this section is the "signal circuit isolator". If you don't use them, you MUST employ a Class A circuit to ensure survivability of the system. Your local jurisidictional authority may have imlemented some special provisions to supplement the Code requirements, however, so it would be prudent for you to check with them before you start planning your wire runs. An example would be the Vancouver Building By-Law (VBBL). You can review the requirements in our response to a question concerning the use of insuite signal circuit isolators HERE. Two-way voice communication risers (fire fighter's telephones) are most often wired Class B. There are some pretty strict rules about how a riser is installed and what measures you have to employ to meet the test of system survivability. These have to do with maintaining proper fire separations, fire stopping, routing of cable, etc. In many cases the design engineer will stipulate whether Class A or Class B runs should be used so it's important that you review the specifications of the project as well before you start. 50. Is it permissible to use a UL® listed fire alarm device on a Canadian system even if they're both made by the same manufacturer? In Canada, you can only use ULC® listed devices on a ULC® listed fire alarm panel. Conversely, you can't use a ULC® listed device on a UL® listed fire alarm panel in the United States. The "cUL®" mark is the only one that is recognized as having "no barrier" for use in either country. Using a non-listed device on a listed fire alarm panel is strictly forbidden and would invalidate the ULC® (or UL®) listing. CAN/ULC-S524-06 (Installation of Fire Alarm Systems) states in Section 3.1.3: "Devices and equipment used in a fire alarm system , and the interconnection to the fire signal receiving centre, shall comply with the following Standards:
Tech TIP: If your employer is sourcing fire alarm product from an agency outside of your country's testing jurisdiction for use on a listed fire alarm panel, you cannot install it, and you cannot validate such an installation by accepting (or passing) it. 51. What's the acceptable voltage drop between the fire alarm control panel and the end-of-line resistor? CAN/ULC-S524 Section 3.4.4 states: "The voltage drop and power dissipation on any circuit shall not prevent the proper operation of that circuit and shall be in accordance with the manufacturer's installation instructions." This can vary significantly between manufacturer, panel models, and modules. That's why it's really important for you to be able to reference the installation manual for the panel you're testing. You'll also be able to determine if the correct gauge of wire has been used for the estimated length of the run. 52. Does the Ontario Building Code allow for the installation of fault isolation modules above a T-Bar Ceiling? Neither the National Building Code or the Provincial ones stipulate exactly WHERE to mount fault isolation modules. For the answer to this question, you have to reference CAN/ULC-S524-06 (Standard for Installation of Fire Alarm Systems), specifically Section 5.14 which is titled "Fault Isolation Modules". Clause 5.14.3 states: "Except as noted in Clause 5.14.4, fault isolation modules, shall be located in a separate enclosure, installed so as to be visible and accessible at all times, and located beyond the last device in the data communication link serving that floor area." (actual answer underlined for emphasis) The way I interpret this clause in the Standard is that you can mount the isolator IN the T-Bar, but not ABOVE it for the unit to meet the requirement of being "visible and accessible at all times". There are some additional requirements as well (the least of which is the test to meet the required fire rating which most T-Bar ceiling systems fail to do). It's best for you to review all the clauses in this section of the Standard before you proceed with the installation. 53. Would you recommend one of those "mini" fire extinguishers for a home? Let me start off by stating that I've never experienced an uncontrolled fire in my home, but I do know several people that have. Here's a few basic rules I go by:
I have several extinguisher types in my home. I prefer a 5lb. ABC rated extinguisher for general use. For my kitchen and barbeque I have "K" class extinguishers. Clean up of the latter is much easier and because it's a liquid agent it also helps to prevent something called "reflash", which is a danger particularly around hot cooking surfaces. As an alternative for the kitchen, I would recommend a 5 or 10 lb BC rated extinguisher. I have a "clean agent" extinguisher in my home office because the thought of discharging a dry chemical extinguisher into the same room that houses my server rack and colour printers is too horrifying to contemplate.
It's a good idea to familiarize yourself with the proper methods of putting out common kitchen and household type fires. A number of helpful videos can by found on youtube or your local fire department's website and often involve a "common sense" approach that may not even require using a fire extinguisher (particularly when it comes to grease or cooking oil fires). You should also familiarize yourself with the care, maintenance and use of your particular type of extinguisher. The best way of dealing with a fire in the kitchen however, is to ensure one never starts. This involves exercising caution when working around your stove and keeping flammable items safe and secure. 54. How do you tell when a fire extinguisher is bad? This question has a very broad answer because there are a lot of failure criteria and (in most cases) you have to be trained to know what to look for. The simplest indicator is the pressure gauge found on most common type fire extinguishers (illustrated in the previous question). The gauge usually has a green zone sandwiched between two red zones. If the indicator is in either of the red zones, your extinguisher is "bad" and requires immediate service. A number of extinguishers have a metal pull or safety pin that prevents an accidental discharge of the extinguisher when you're moving it or servicing it. If that pin is missing, it's "bad" and requires service. If, when weighed, the unit doesn't fall within the weight stipulated on the label, it's "bad" and requires service. If the cylinder has been damaged (dented, scarred, engraved, scored or deeply scratched), it's "bad" and, depending on the severity of the damage, might even have to be destroyed. These are but a few (and the most obvious) of the testing criteria. You should be looking for some of these every month if you're an apartment or building manager and performing the scheduled "walk-through" of your project in accordance with your Fire Safety Plan. There is one other parameter you must check. Most common low pressure type extinguishers have to go through two mandatory maintenance tests. The first one occurs six (6) years after the date of manufacture, while the second happens after twelve (12) years (with the cycle repeating itself from each testing date there-after). You can find the date of manufacture stamped into the bottom of the extinguisher or on the label affixed to it's shell. The first test can be performed by any service company that has the ability to properly harvest the agent, examine its consistency, carry out an internal examination of the cylinder, replace the agent and repressurize the unit. This is called a "six year maintenance". The second test is the hydro-static test which is explained in a preceding FAQ. Both tests (when successfully concluded) will result in a label being affixed to the cylinder which explains the type of test conducted and provides the date of the test.
